SL-T805B Computer Servo Pull Pressure Testing Machine
Use
This test machine is suitable for the following tests:
1. Tensile test of thin metal sheets, wires and fibers;
2. Tensile, compressive and bending tests of plastics, rubber and composite materials;
3. Pull-off, peeling, welding strength of electronic components. Small deformation. Test;
4. The bending strength test of the circuit board;
5. Stripping test of printed circuit boards;
6. Spring test.
Introduction
The test software interface luxury features super high price and low cost performance, can be used for pulling, pressing, bending, folding, shearing, stripping, etc. Testing for metal, non-metal, all kinds of special materials and finished products testing almost all tests The project has been covered in this version of the software, the use of fuzzy control makes the control system debugging is very simple and the test software is easy to learn.
Features
Power: Japan Matsushita AC servo control system
Transmission components: imported from Germany without gap precision ball screw and timing timing belt
Guided optical axis: high hardness steel is hardened, the surface is bright, wear-resistant, never rust, no deformation, etc.
Body: Special treatment with high quality steel and high-grade baking varnish, beautiful and durable, no discoloration, no discoloration.
Fixture structure: The universal quick-connecting clamp joint with special matching design, the installation fixture is fast, convenient, accurate and practical, so as to improve the test efficiency.
Reducer: Taiwan Lishao reducer.
Load cell: Load capacity 5N-5000KN, accuracy 0.5% in accordance with BS EN ISO 7500 Part 1 and ASTM E4. Accuracy of ±0.5% reading reduced to 2% of the load range. Readings dropped to zero load
Technical parameters
Load capacity: 5N, 50N, 100N, 500N, 1KN, 5KN, 10KN, 20KN, 30KN, 50KN, 100KN.
Load accuracy: ±0.5% of display value, ±1% can be selected; test speed: 0.01-510mm/min.
Machine stroke: 1400mm (including fixture) Static space 650; Test width: 530 left and right infinity.
Machine weight: about 450kg; power unit: kgf, KN, N, lbf, etc.; 5T outer size: 1005 * 585 * 1850. Material fixture: 1 pay (according to the material to be determined)
|
|

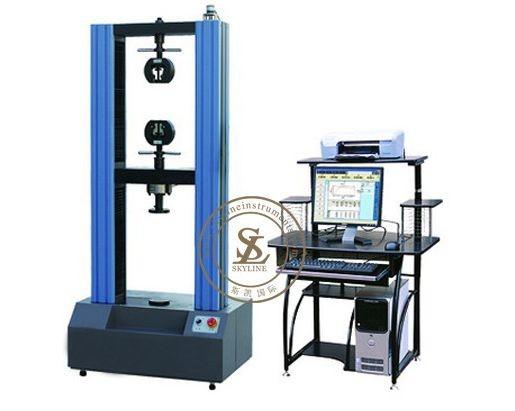

Tensile Strength Testing Machine Computer Servo Pull Pressure Testing Machine Images
|
